TopTemp: Parsing Precipitate Structure from Temper TopologyDownload PDF

02 Mar 2022, 12:21 (edited 25 Apr 2022)GTRL 2022 SpotlightReaders: Everyone
  • Keywords: Topological data analysis, materials science, temper classification, explainable modeling, shear assisted processing extrusion
  • TL;DR: Use of topological features for identifying the heat-treatment process of a material based on imagery from scanning electron microscopy.
  • Abstract: Technological advances are in part enabled by the development of novel manufacturing processes that give rise to new materials or material property improvements. Development and evaluation of new manufacturing methodologies is labor-, time-, and resource-intensive expensive due to complex, poorly defined relationships between advanced manufacturing process parameters and the resulting microstructures. In this work, we present a topological representation of temper (heat-treatment) dependent material micro-structure, as captured by scanning electron microscopy, called TopTemp. We show that this topological representation is able to support temper classification of microstructures in a data limited setting, generalizes well to previously unseen samples, is robust to image perturbations, and captures domain interpretable features. The presented work outperforms conventional deep learning baselines and is a first step towards improving understanding of process parameters and resulting material properties.

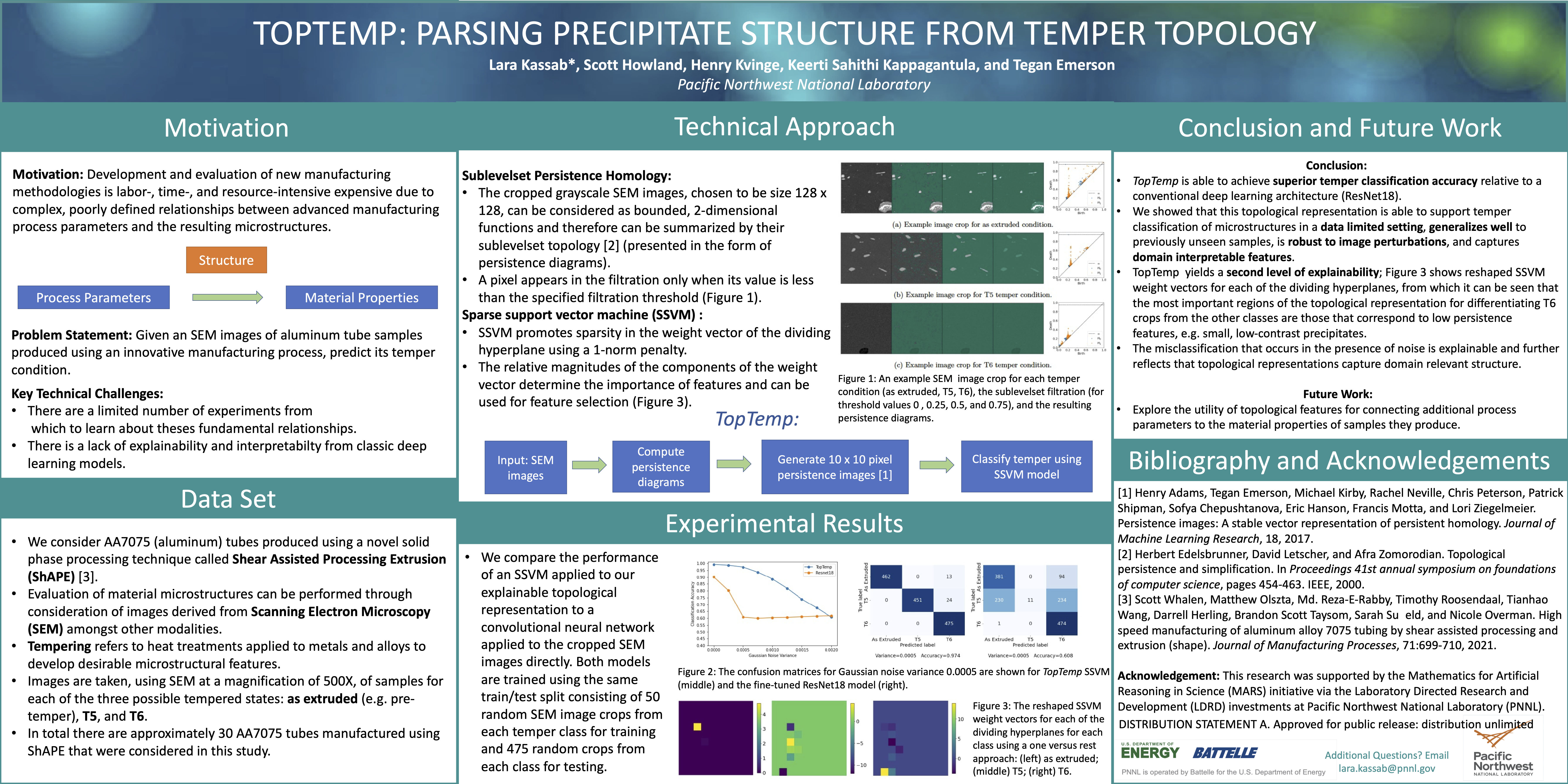

  • Poster: png
