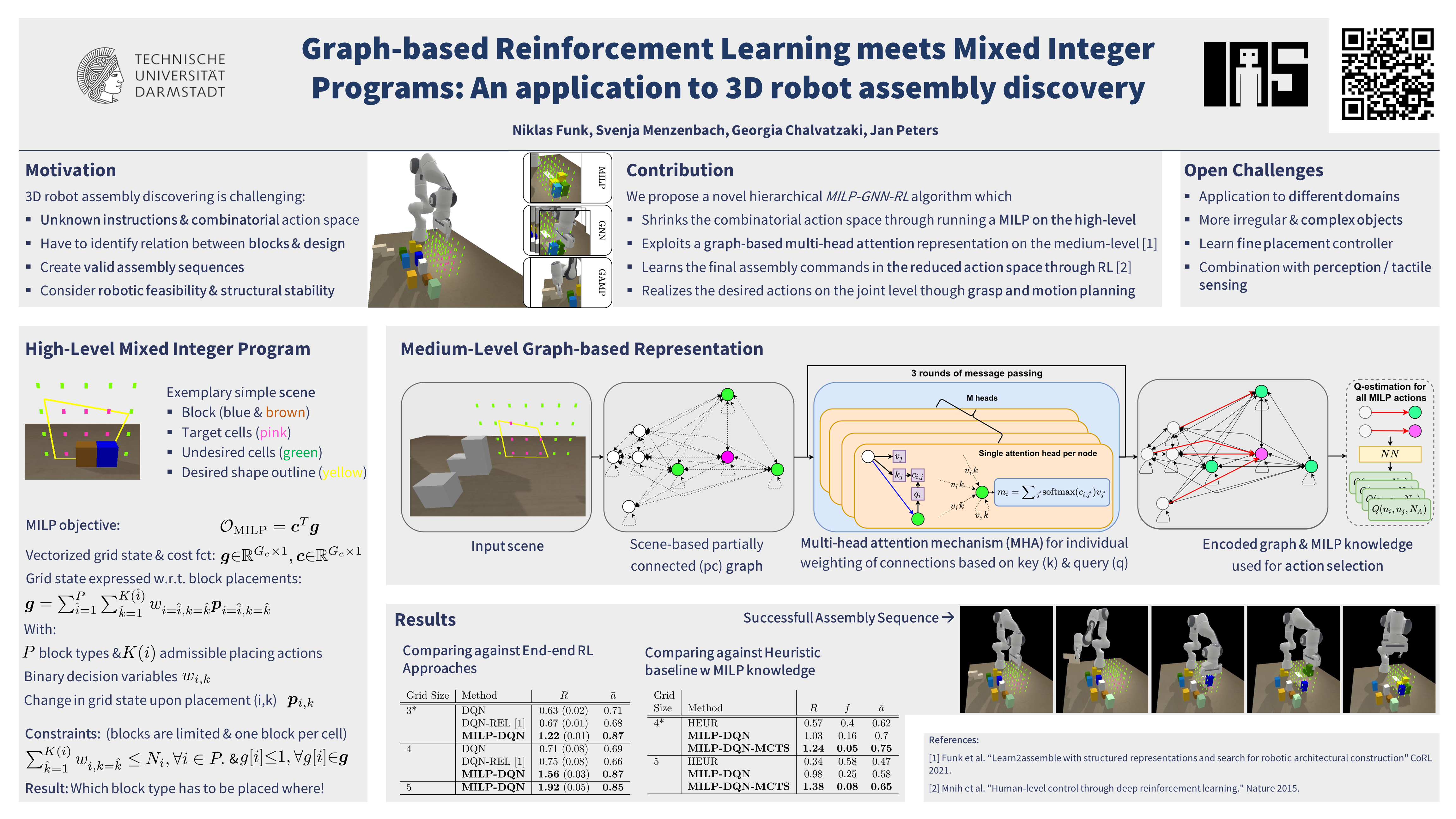

Graph-based Reinforcement Learning meets Mixed Integer Programs: An application to 3D robot assembly discovery

Niklas Funk, Svenja Menzenbach, Georgia Chalvatzaki, Jan Peters

Keywords: graph neural networks, reinforcement learning, robotics

TL;DR: Combining graph-based reinforcement learning and mixed integer programs yields more powerful policies compared to end-end graph-based approaches in a robotics task with combinatorial complexity.

Abstract: Robot assembly discovery is a challenging problem that lives at the intersection of resource allocation and motion planning. The goal is to combine a predefined set of objects to form something new while considering task execution with the robot-in-the-loop. In this work, we tackle the problem of building arbitrary, predefined target structures entirely from scratch using a set of Tetris-like building blocks and a robot. Our novel hierarchical approach aims at efficiently decomposing the overall task into three feasible levels that benefit mutually from each other. On the high level, we run a classical mixed-integer program for global optimization of blocktype selection and the blocks’ final poses to recreate the desired shape. Its output is then exploited as a prior to efficiently guide the exploration of an underlying reinforcement learning (RL) policy handling decisions regarding structural stability and robotic feasibility. This RL policy draws its generalization properties from a flexible graph-based neural network that is learned through Q-learning and can be refined with search. Lastly, a grasp and motion planner transforms the desired assembly commands into robot joint movements. We demonstrate our proposed method’s performance on a set of competitive simulated and real-world robot assembly discovery environments and report performance and robustness gains compared to an unstructured graph-based end-to-end approach. Videos are available at https://sites.google.com/view/milp-gnn-for-rad .

Type Of Submission: Extended abstract (max 4 main pages).

Type Of Submission: Extended abstract.

Video: https://sites.google.com/view/milp-gnn-for-rad
